If you’ve ever stood in front of a loose electrical outlet, a broken switch, or a funky-looking GFCI and wondered, “Can I fix this myself?” — you’re in the right place. Replacing an electrical outlet or switch is one of the most common and rewarding DIY home-improvement tasks. Done correctly, it’s safe, usually quick, and can save you money while restoring convenience and safety to your home. Done incorrectly, however, it can be dangerous. That’s why this long-form guide walks you through the entire process, from understanding basic electrical terms to troubleshooting after installation and knowing when to call a licensed electrician.
Before we start, a quick note: you did not provide a specific list of keyword phrases to incorporate into this article. I’ll move forward without them, focusing on clear, practical, and safe instructions delivered in conversational language. If you have particular phrases you want included, tell me and I’ll update the content accordingly.
Why Replace an Outlet or Switch?
Outlets and switches get a lot of use. Over time they become worn, cracked, loose, or unsafe. A discoloration, a warm outlet face, frequent tripping, or an outlet that no longer holds a plug securely are signs it’s time for replacement. Replacing a worn or damaged outlet or switch can fix electrical squeaks and sags, reduce fire risk, and get your circuits working properly again.
Not every electrical problem requires a full replacement, but many do. Replacing a cover plate won’t fix a loose outlet, and tightening the terminal may not help if there’s internal arcing or heat damage. This guide will help you determine when a replacement makes sense, what tools and parts you need, and how to do the job safely.
Who should read this guide?
This guide is written primarily for homeowners and DIYers who have a basic comfort level with hand tools and who want clear, step-by-step instructions. If you’re at all unsure about your abilities or if you run into complicated wiring (like aluminum wiring, unfamiliar old cloth-insulated wire, or complicated multi-wire switches), stop and contact a licensed electrician.
Basic Electrical Concepts You Should Know
Before diving into the step-by-step work, let’s get comfortable with a few basic terms and concepts. Understanding these will help you identify wires and make safe decisions during the replacement.
Key terms
- Hot (Live) wire: Carries current to the device; typically black, red, or another color other than white or green.
- Neutral wire: Returns current to the service panel; usually white or gray.
- Ground (earth) wire: Provides a safe path to earth in case of faults; usually green or bare copper.
- Breaker: A protective device in your electrical panel that shuts off current if there is an overload or short.
- GFCI (Ground Fault Circuit Interrupter): A special outlet that prevents shock by cutting power if it detects leakage current to ground.
- AFCI (Arc Fault Circuit Interrupter): Detects dangerous arcing conditions and trips the circuit to reduce fire risk.
- Feed-through (or daisy-chain): When power continues from one device to another using the same box, often using a “line” and “load” configuration on GFCIs.
Common wire color meanings
| Wire Color | Typical Use | Notes |
|---|---|---|
| Black | Hot | Used for line conductors; often switched hot as well |
| Red | Hot (secondary) | Used for switched legs and three-way switches |
| White | Neutral | Should be neutral in most modern wiring; can be repurposed in certain cases but must be re-identified |
| Green or Bare Copper | Ground | Safety conductor; always ground to metal boxes and device ground screw when present |
| Blue/Yellow | Hot (switch legs) | Occasionally used as traveler wires or switched conductors |
Note: Wire colors can vary depending on age, special circuits, and local practices. When in doubt, always verify with a reliable voltage tester or call a professional.
Tools and Materials You’ll Need
Replacing an outlet or switch is a simple job in terms of tools, but having the right equipment makes it much safer and faster. Here’s a handy table of the most common tools and supplies you’ll want to have on hand.
| Item | Purpose | Notes / Suggested Types |
|---|---|---|
| Screwdrivers (flat & Phillips) | Remove cover plates, device screws, and terminal screws | Insulated screwdrivers are a plus |
| Voltage tester / Non-contact tester | Verify power is off | Always test before touching wires |
| Multimeter | Measure voltage, continuity | Useful for troubleshooting |
| Needle-nose pliers | Bend wires, make pigtails | Helps secure wires on screws |
| Wire strippers | Strip insulation to proper length | Choose a tool sized for 14 AWG or 12 AWG |
| Wire nuts | Connect wires for pigtails or splices | Size-rated; use the right size for number of conductors |
| Electrical tape | Insulate splices (if necessary) | Not a substitute for proper connectors |
| Replacement outlet or switch | The new device being installed | Match amperage and voltage; tamper-resistant recommended for receptacles |
| Outlet tester | Checks wiring correctness (polarity, ground) | Handy final check |
| Flashlight | Light inside closets or dim rooms | Helpful when power is off |
Estimated cost: basic tools may already be in your toolbox. A replacement duplex outlet costs $2–$10; GFCI outlets cost $15–$40; a single-pole switch costs $1–$8. Expect to spend $20–$60 if buying a few tools and supplies.
Types of Outlets and Switches You Might Encounter
Not all outlets and switches are created equal. Recognizing the type you’re working with is important because the replacement method can differ.
Outlets

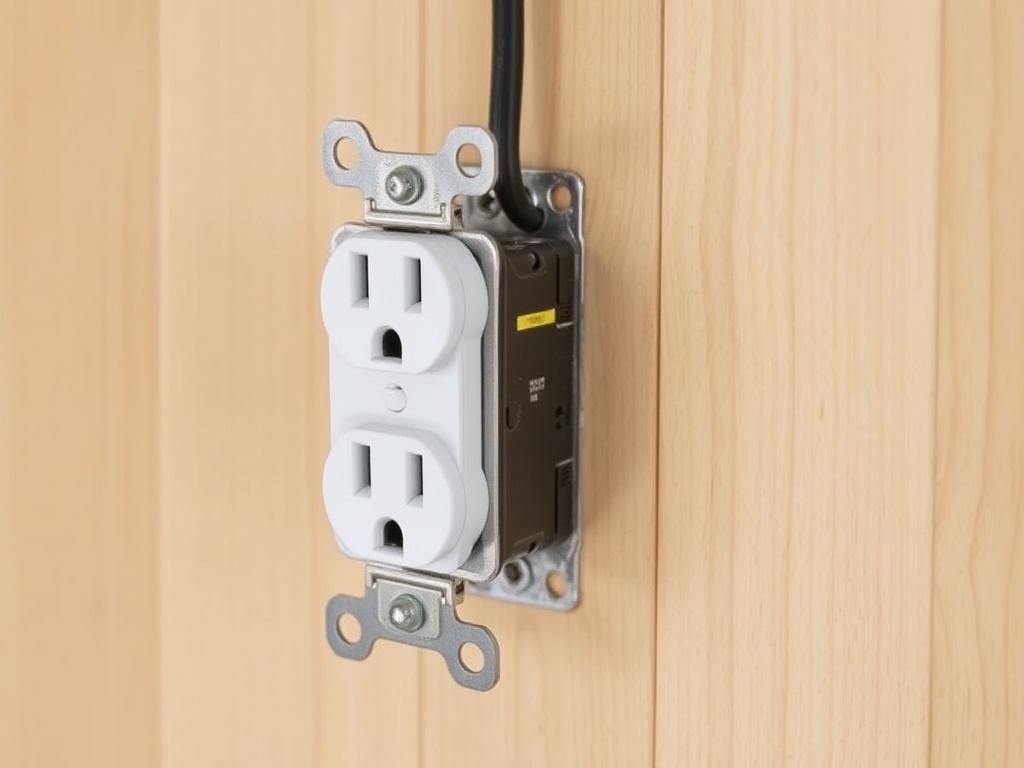

- Standard Duplex Outlet: Two receptacles, typically 15A or 20A. Most common in living spaces.
- GFCI Outlet: Has test and reset buttons; used in bathrooms, kitchens, garages — areas near water.
- AFCI / Combination Outlets: Offer arc-fault protection; sometimes integrated into outlets or provided at the breaker.
- Tamper-Resistant (TR) Outlets: Required by code in many jurisdictions for new construction — have a shutter to prevent objects from being inserted.
- USB / Smart Outlets: Combine standard receptacles with USB ports or network features. They require the same basic wiring but may need more depth in the box.
Switches
- Single-Pole Switch: Controls a light or device from one location. Has two screw terminals and often a ground.
- Three-Way Switch: Used when two switches control the same light (e.g., top and bottom of stairs). Has three terminals plus ground (two travelers and one common).
- Four-Way Switch: Used when three or more switches control the same light; sits between two three-way switches in the circuit.
- Dimmer Switches: Control brightness; must match the type of light (incandescent, LED, etc.) and be compatible with LED fixtures.
Knowing the type helps you buy the right replacement. For example, replacing a GFCI with a standard outlet is not safe in a bathroom or near water. Similarly, replacing a three-way switch with a single-pole by mistake will break the switching arrangement.
Safety First: How to Prepare
Electrical safety should be your top priority. Read these steps and follow them strictly each time you work on an outlet or switch.
Safety checklist
- Turn off the circuit breaker for the outlet or switch you’ll be working on. Do not rely on a wall switch to cut power.
- Use a non-contact voltage tester to confirm power is off at the device. Test all wires and the device terminals.
- If working on a circuit that serves outlets and lighting, label the breaker in your panel so others don’t accidentally turn it on.
- Wear safety glasses and, if possible, use insulated tools.
- If you detect signs of overheating (melted plastic, burnt odor, dark discoloration), consider that internal wiring may be damaged and that an electrician should inspect it.
- If you find aluminum wiring, stop and call an electrician. Special connectors and methods are required for aluminum wire.
Always double-check the power is off. It’s common to turn off a breaker and still find a hot feed from another circuit in older installations or from shared neutrals. Confirm every conductor with a tester before touching.
Step-by-Step: How to Replace a Standard Electrical Outlet
Let’s walk through replacing a standard duplex outlet. These steps assume you are replacing an outlet in a standard residential installation with copper wiring and a single electrical box. If your setup is different—multiple circuits in the box, aluminum wire, or other irregularities—stop and consult an electrician.
Step 0 — Preparation
Gather your tools, buy the correct outlet (15A or 20A to match circuit), and turn off the breaker. Remove any plugs from the outlet and clear the area.
Step 1 — Verify power is off
Use a non-contact voltage tester at the face of the outlet and on the wires after removing the cover plate to ensure the circuit is dead. Walk over to your panel and flip the appropriate breaker off, then test again at the device. It is safe only when the tester shows no voltage on all terminals and wires.

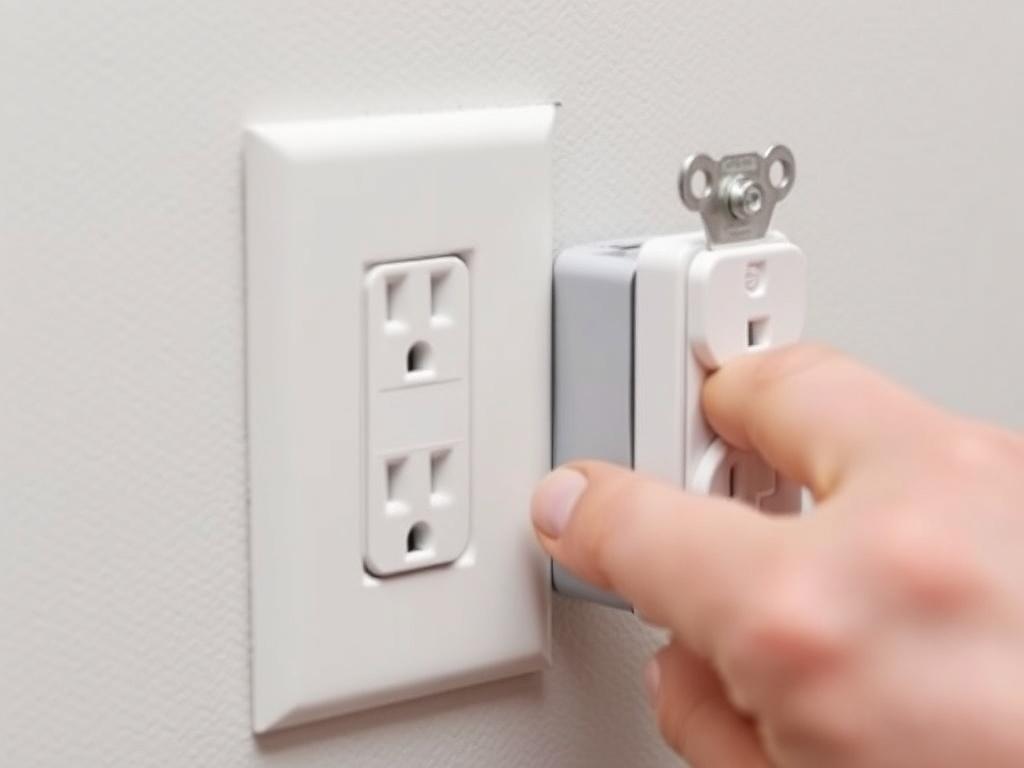

Step 2 — Remove the cover plate and outlet
Unscrew the faceplate and then remove the screws holding the outlet to the electrical box. Pull the outlet straight out carefully. Do not pull too far; wires are attached.
Step 3 — Inspect wiring
Observe how wires are attached. Typical configurations:
- One cable (hot + neutral + ground): outlet serves just that one box.
- More than one cable: the outlet is likely part of a circuit that feeds other devices — you will see multiple hot/neutral wires.
- Back-wired vs. side-screw: The wires may be looped and tightened under terminal screws on the side, or they may be inserted into spring-back “back-wire” holes on the back of the outlet.
Take a clear photo with your phone. A visual record helps ensure correct reconnection.
Step 4 — Remove wires
If the outlet is connected using back-wire holes, you may need to release the wires by loosening the terminal screws or by inserting a small screwdriver into the release slot on the device. For side-screw connections, loosen the screws and unwind the wires.
If multiple hot or neutral wires are present (feed-through), they will likely be under the same terminal or connected with a pigtail. Remove them carefully and keep track of which are hot and which are neutral.
Step 5 — Prepare the wires
Check the wire ends. If insulation is nicked or the conductor is corroded, cut it back and strip clean insulation to expose fresh copper, about 5/8″ (16 mm). If you need to make a pigtail, twist together the conductors and secure with an appropriately sized wire nut, then attach a short length of wire to the outlet screw.
Step 6 — Attach wires to the new outlet
Attach the hot wire(s) to the brass-colored screw(s) and the neutral wire(s) to the silver-colored screw(s). If the outlet has a break-off tab across the hot side and it’s a half-switched outlet, do not remove the tab. Tighten screws firmly so the wire cannot be pulled free but avoid overtightening and damaging the screw.
Ground wires: attach the bare or green wire to the green grounding screw on the outlet. If multiple grounds are present, secure them together with a pigtail to the outlet ground screw.
Remember: hot to brass, neutral to silver, ground to green.

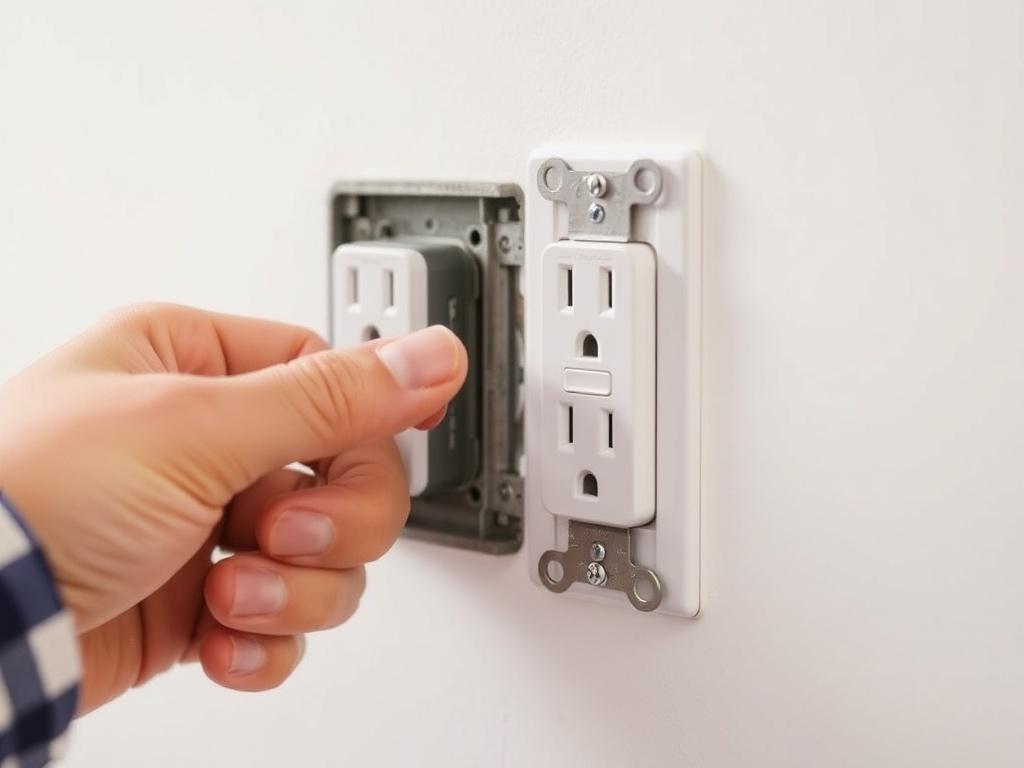

Step 7 — Carefully fold the wires back into the box
Neatly fold the wires back into the electrical box, pushing the outlet into place without pinching conductors. Use the outlet’s mounting screws to secure it to the box. Replace the faceplate.
Step 8 — Restore power and test
Turn the breaker back on and use an outlet tester or plug in a small device to test. Also press the ground pin of the tester to check correct grounding and polarity. If the tester indicates a problem, turn off power and re-check your wiring.
Tips for Specific Wire Configurations
| Configuration | How to Connect | Notes |
|---|---|---|
| Single cable (one hot, one neutral, one ground) | Hot to brass screw, neutral to silver screw, ground to green screw | Simple swap; match gauge (14 AWG for 15A, 12 AWG for 20A) |
| Multiple cables feeding downstream | Create pigtails for hot and neutral: twist feed wires and pigtail to device | Prevents loosening multiple wires under one screw |
| Switched half outlet | Hot side tab removed, one hot feed to always-hot screw, switched hot to separate screw | Take clear photos before removing to identify which conductor is switched |
A common pitfall: attempting to cram multiple conductors under one screw that is only rated for a single conductor. Use a pigtail if necessary to maintain a secure connection.
Step-by-Step: Replacing a Standard Light Switch
Replacing a light switch is similar in many ways to replacing an outlet, but recognizing switch types is essential. Here’s how to replace a single-pole switch (the most common type).
Step 1 — Turn off power and verify
Turn off the breaker controlling the switch. Confirm power is off with a non-contact tester at the switch and, if you have access, on the wire leads.
Step 2 — Remove the switch cover plate and switch
Unscrew the cover plate, then remove the screws holding the switch. Pull it straight out from the box to access the terminals.
Step 3 — Identify the wires
A standard single-pole switch has two screw terminals (usually brass-colored) and a ground screw (green). One terminal is the hot feed, and the other is the switched hot going to the light fixture. The neutral typically bypasses the switch and isn’t connected to it.
Take a photo for reference before removing anything. If wires are identical in color, identify the hot with a tester before turning power back on (if necessary to test) — but only if you are comfortable doing so safely.
Step 4 — Remove the wires
Loosen screws and remove the wires. If the wires are looped around the screw, unbend them carefully.
Step 5 — Attach wires to the new switch
Attach the hot to one brass screw and the switched hot to the other brass screw. Tighten the screws. Connect ground to the green screw.
Step 6 — Re-seat and test
Fold the wires back into the box, mount the new switch, replace the cover, and turn the breaker on. Test the switch to ensure it operates the light or device as intended.
Single-pole vs. three-way switches
If you have three terminals plus ground, you likely have a three-way switch. Three-way switches are used to control the same fixture from two locations. The common terminal on a three-way is usually a different color (often black) from the traveler terminals. Do not swap the common and travelers when installing the new switch — flipping them will prevent the three-way circuit from working.
Replacing a three-way switch (high-level)
Three-way switches are more complex. The typical steps include:
- Turn off breaker and verify power is off.
- Mark which wire is connected to the common (different-colored screw) before removing it. If you did not mark it, photograph it.
- Disconnect wires and connect them to the corresponding terminals on the new switch — common to common, travelers to travelers, ground to ground.
- Mount and test.
Because wiring colors can be inconsistent, marking and photographing before removal is invaluable. If you don’t understand which terminal is the common, stop and call a pro.
How to Replace a GFCI Outlet
GFCI outlets have “Line” and “Load” terminals. The line feeds the device from the panel; the load provides GFCI protection to downstream outlets. Mixing up line and load is a common cause of a GFCI not protecting downstream receptacles.
Step-by-step
- Turn off breaker and verify power is dead.
- Remove faceplate and device to access wires.
- Identify which wires are line (from panel) and which are load (to other outlets). If you’re unsure, separate and test with power restored momentarily (only if you know what you’re doing) or mark the wires before removing the old GFCI. A helpful method is to disconnect all wires, restore power briefly, and use a multimeter to find which wires have hot to the neutral — label that pair as line, then turn off power again.
- Connect the line hot to the GFCI line hot terminal and line neutral to the GFCI line neutral. If you have load wires and want them protected, connect them to the GFCI load terminals.
- Attach ground to the GFCI ground screw.
- Mount device, turn power back on, and press the reset button. Use the test button to ensure it trips properly. Use an outlet tester to confirm the correct configuration and protection.
GFCI outlets will not work correctly if line and load are swapped. Always double-check your connections if the device doesn’t reset.
Common Troubleshooting After Replacement
Even when you follow every step, issues can pop up. Here are common problems and practical fixes.
Outlet or switch has no power
- Verify the breaker is on; sometimes labeled breakers are misleading.
- Check for a tripped GFCI upstream. Reset it if present.
- Make sure the hot conductor is properly connected. Back-wire or loose screws will prevent power.
Outlet tester indicates reversed polarity
Reversed polarity means hot and neutral are swapped. Turn off power and reconnect so hot goes to brass screw and neutral to silver screw.
Outlet feels warm or emits a burning smell
Turn off power immediately. Warmth indicates loose connections or excessive load. Inspect for damaged insulation or charred components—call an electrician if anything is burned.
Switch clicks but light doesn’t come on
Could be a bad bulb, loose bulb, bad fixture, or wiring to fixture. Test with a known-good bulb and verify the fixture’s feed is intact.
GFCI won’t reset
Make sure line and load wires are not switched. Test by disconnecting the load wires temporarily and trying to reset. If it still won’t reset, the GFCI may be defective or the line may be open upstream.
Special Situations and Considerations
Aluminum wiring
If you find aluminum conductors (silver-colored, sometimes stamped Al), do not use regular wire nuts or standard devices unless they are rated for aluminum (AL-CU). Aluminum requires special connectors and is a higher fire risk if improperly handled. Call an electrician.
Old cloth-insulated wiring
Older homes may have cloth-insulated or knob-and-tube wiring. These systems are aged and may not be safe to disturb. Consult a professional before attempting any job that requires major changes.
Multiple circuits in one box
In some boxes you will find conductors fed by multiple breakers. Be careful—turning off one breaker might not de-energize all wires. Test every conductor and consider a service panel map or electrician if you can’t be sure.
Shared neutrals / multi-wire branch circuits
When two circuits share a neutral, the breakers should be tied or handle-tied so both can be turned off together. If you encounter shared neutrals and un-tied breakers, stop and call an electrician.
Electrical Code Basics and Safety Standards
Electrical codes (such as the NEC in the U.S.) set minimum safety standards. While a full code study is beyond this guide, here are several rules that affect outlet and switch replacement jobs.
- Tamper-resistant receptacles are required in many new installations for general-purpose outlets.
- GFCI protection is required in kitchens, bathrooms, garages, basements, outdoors, and near water sources.
- AFCI protection is increasingly required in living spaces — sometimes at the breaker, sometimes at the outlet.
- Box fill: Boxes must be large enough to accommodate the number of conductors and devices. Overfilled boxes create heat and mechanical stress.
- Grounding: All metal boxes and conduits must be properly grounded, and devices must be grounded as required by code.
| Item | Rule / Consideration |
|---|---|
| Tamper-Resistant Receptacles | Required for most general-purpose receptacles in new construction and renovations. |
| GFCI Protection | Required in bathrooms, kitchens, garages, outdoors, basements, laundry areas. |
| AFCI Protection | Increasingly required in bedrooms and other living spaces to prevent arc-fault fires. |
| Box Fill | Conductor count determines required box volume; devices and grounds count toward fill. |
If you’re doing more than a simple replacement — such as adding circuits, changing receptacle types, or reconfiguring wiring — consult local code or a licensed electrician. Codes differ by region and are updated frequently.
Common Mistakes and How to Avoid Them
Even simple jobs can go wrong if you rush or skip important safety steps. Here’s a list of common mistakes and how to avoid them.
- Not shutting off the correct breaker: Always identify and label breakers; test before touching wires.
- Skipping the voltage test: Never trust the switch position — test every conductor.
- Poor screw connections: Loose screws cause arcing and heat. Tighten properly but don’t strip screws or overtighten.
- Mixing up line/load on GFCI: Label wires before disconnecting and double-check connections.
- Not using pigtails when required: If multiple wires need to connect to a single device terminal, use pigtails.
- Using the wrong device rating: Don’t replace a 20A outlet with a 15A outlet on a 20A circuit.
Upgrades, Alternatives, and Adding Features
When replacing a device, consider if it’s a good time to upgrade. Many small changes improve functionality and safety:
- Install tamper-resistant outlets in living spaces for child safety.
- Replace old outlets with GFCI in wet locations or AFCI where required.
- Swap in USB outlets to reduce clutter from phone chargers.
- Upgrade to smart switches for remote control or dimming features — ensure compatibility with LED lights.
Remember that adding features like smart controls may require a neutral in the switch box. Many older homes don’t have neutrals in switch boxes; ensure compatibility before buying a smart device.
When to Call a Professional Electrician
Some situations are straightforward DIY, but others clearly require a professional’s touch. Here’s when to call an electrician:
- Any discovery of aluminum wiring.
- Evidence of burning, melted insulation, or charring.
- Frequent tripping of breakers that you can’t isolate.
- Shared neutrals or other complex multi-wire branch circuits.
- Multiple devices in one box with overcrowding or when you need to increase box capacity.
- When local code requires tamper-resistant or AFCI/GFCI devices in ways you’re unfamiliar with and need permitting.
Electricians bring training, correct tooling, familiarity with local code, and insurance that protects your home. For tricky situations or if you feel uncomfortable at any point, call a pro.
Estimated Time and Cost
Here are typical time and cost estimates for common replacement tasks. Actual cost varies by region and device quality.
| Task | Estimated DIY Time | Typical Parts Cost | Pro Service Cost (approx) |
|---|---|---|---|
| Replace standard duplex outlet | 15–30 minutes | $2–$10 | $75–$150 (service call + labor) |
| Replace GFCI outlet | 20–45 minutes | $15–$40 | $100–$200 |
| Replace single-pole switch | 15–30 minutes | $1–$8 | $75–$150 |
| Replace three-way switch | 20–45 minutes | $5–$15 | $100–$250 |
| Install smart switch or USB outlet | 30–60 minutes | $30–$80 | $120–$300 |
DIY jobs can save money, but remember to factor in the value of your time and safety equipment. If the job expands into larger rewiring, the cost and complexity rise quickly.
Maintenance and Care After Replacement
After replacing an outlet or switch, a little routine care can keep things working smoothly:
- Check outlets periodically for looseness. Replace any receptacle that wiggles in the box.
- If you notice buzzing or flickering, turn off the circuit and inspect or call an electrician.
- Test GFCI outlets monthly by pressing the test button to ensure they trip and reset properly.
- Keep outlets and switches dry and clean. Don’t overload receptacles with high-amperage items without a proper circuit.
Frequently Asked Questions (FAQ)
Can I replace an outlet with the power on if I’m careful?
No. You should never replace an outlet or switch with the circuit energized. Turn off the breaker and verify with a voltage tester first. Working on live electrical circuits increases the risk of severe injury or death.
How do I know whether to buy a 15A or 20A outlet?
Match the outlet rating to the circuit breaker and wire gauge. 15A outlets are used with 14 AWG wire on a 15A breaker. 20A outlets require 12 AWG wire and a 20A breaker. A 20A outlet can accept a 15A plug, but code requires the correct breaker-wire-device combination.
Why is an outlet warm?
Warm outlets indicate loose connections, internal arcing, or heavy load. Turn off the breaker and inspect. Warmth is not normal and should be corrected promptly.
Is it okay to use electrical tape instead of replacing a damaged outlet?
No. Electrical tape may temporarily insulate, but it doesn’t fix damaged contacts or internal connections. Replace the outlet if it’s damaged.
Can I replace an old two-prong outlet with a three-prong?
Three-prong outlets require grounding. If your two-prong receptacle is ungrounded, you cannot simply install a three-prong outlet unless the box is grounded or you install a GFCI with proper labeling. Best practice is to have the circuit properly grounded by a professional if needed.
Common Scenarios — What to Expect
Here are some real-world situations you might run into and how to handle them.
Scenario: Outlet is loose in the wall
Sometimes an outlet is secure electrically but loose in the wall. Tighten the mounting screws. If the box is damaged or the screws no longer bite, you may need to use longer screws into studs or install new mounting ears or a larger box. In wall repairs, consider using box supports or bracket systems designed for retrofit boxes.
Scenario: One half of the outlet doesn’t work
This could be a broken hot-side tab (on half-switched outlets where one receptacle is controlled by a wall switch). Remove the outlet and inspect the tab between brass terminals. If broken, replace the outlet and reattach wires properly. If it was supposed to be permanently hot and the tab is broken incorrectly, reconfigure as needed.
Scenario: Outlets keep tripping the breaker
Tripping indicates overload or a short. Unplug devices and try resetting. If it trips immediately, you likely have a short (hot to neutral or ground). Turn off power and investigate connections. If the problem persists, call an electrician.
Practical Tips That Save Time and Headaches
- Take photos at each step. This simplifies reassembly and ensures correct wiring orientation.
- Label wires with small masking tape and a pen if you’re working on multiple changes.
- Keep hardware from each device in a small bag labeled by box or circuit.
- When pulling wires back into a tight box, gently fold them in a loop rather than kinking them.
- Invest in a good non-contact voltage tester — it’s the simplest, most reliable safety check.
Summary and Final Thoughts
Replacing an electrical outlet or switch is a manageable and valuable DIY skill. With the right tools, cautious preparation, and careful attention to wiring, most homeowners can replace devices safely. The essential rules are simple: turn off the power, verify zero voltage, observe wire colors and terminal functions, make secure connections, and test the device after installation.
That said, electrical work can quickly become complicated. If you encounter aluminum wiring, multiple circuits in a single box, signs of burning, or anything you don’t understand, stop and call a licensed electrician. Safety and local code compliance are paramount.
If you’d like, I can create a printable checklist for a single outlet replacement, or walk you through a particular wiring photo you have. Just upload a clear photo of the outlet or switch and I’ll help you identify wires and map out the safest next steps.
Want a printable checklist?
If you’d like, tell me “printable checklist” and I’ll generate a concise step-by-step checklist you can print and take to the job site. Safe work makes for fast and successful results — and keeps you, your family, and your home protected.
